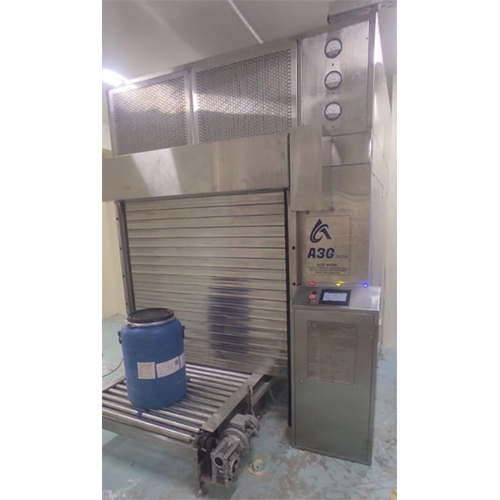

De-dusting Tunnel with Brushing System

About De-dusting Tunnel with Brushing System

De-dusting tunnel with Brushing system

The de-dusting tunnel is standalone contamination control system. It is used to reduce non-viable particles from incoming raw

material containers including drums, cartoon, sacks, and bags prior to sampling. It utilizes high pressure air stream and suck back

system to ensure particles are dislodged and arrested in 2 stage filtration system. It can be installed at receiving bay of incoming raw

materials.

Standard Features:

MOC: GI powder coated, SS304, SS316 or customized

execution

Doors: SS rolling shutter, high speed non-metallic shutter

or antistatic PVC curtains.

Motorized conveyor (S.S. 304 Roller conveyor / PVC food

grade belt conveyor) by means of Gearbox & motor

i S.S. 304 adjustable type, air nozzles

i Shutter doors interlock

i Pre-filter: EU-5

i Intermediate air filter: EU-5

i Final Filter: EU-7

i Magnehelic differential gauge across filter.

i Statically & dynamically balanced motor blower for supply

and exhaust

i LED Light

i PLC / HMI based pre-programmable control system

i 1 No. Horizontal brush to clean the front, top & back face

of the drum/cartoon box (Nylon bristles / Soft Silicon

bristles)

i 2 Nos. vertical brushes to clean both side faces of

drum/cartoon box (Nylon bristles / Soft Silicon bristles)

i 1 No. Horizontal brush, integrated in conveyor, for bottom

cleaning (Nylon bristles / Soft Silicon bristles)

i Emergency stop

i VFD for speed controlling of conveyor,

i Dust collection tray

Optional features:

i Flame proof execution

i Integration with online weight check

i Online Integration with sampling system / booth

i Automatic adjustment to cater multiple sizes of

drums/cartoon boxes

i Any customized process requirement

Performance:

i Air Velocity: 4000 fpm

i Air Flow: Unidirectional (single pass
